Foredeck and Cabin Sides

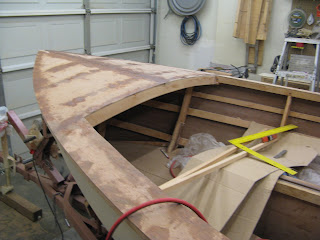

The foredeck and side decks along the cabin have been installed. These are glued and nailed to the frame members.

The cabin sides have been made and installed. I modified the design to make the cabin sides and the cockpit coamings all one piece. I cut out a cardboard pattern first to avoid mistakes, then cut out the plywood. This helped me get the bottom curve right.

The pic below shows the cabin carlines being glued and nailed to the cabin sides. You can see some scrap pieces of 2x4 that have been cut to a curve and clamped to the assembly. This will make the curve of the top of the cabin side is the same as the bottom.

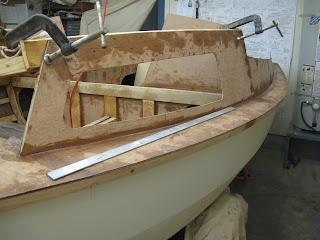

Here are the cabin sides all glued and nailed to the boat. I checked the angles to make sure everything looked right before the glue dried. One side was at a different angle than the other, so some ropes and clamps were added to hold everything in the right spot while the glue dried.

These window openings will later be sealed water-tight with acrylic windows.

Here's a better pic of the scrap 2x4 pieces that will later be removed. If you look close, you can also see a small slot in the side deck. This will be for a metal strap called a chainplate to pass through. The chainplate is where the standing rigging wire attaches to the hull. (more on that when I install the chainplates).

The next step is to install the frame members of the cabin roof and then install the cabin roof and cabin front. This will be a very similar process to the foredeck construction.
