Saturday, September 11, 2010

Side and Aft Decks Glued and Nailed

The boat spent some time on the front lawn this weekend so I could pick up some plywood with the trailer. All the granny knots made when tying down the plywood reminds me that I need to learn how to tie knots before I go sailing for the first time. But I got the plywood home without it flying off and the trailer works great, besides being a bit bouncy without a boat on it.

The aft and side decks have been glued and nailed down. Before I glued the side decks on, I attached some pieces of Doug Fir to decks (nailing from underneath). These are the bases for the coamings. As you can see, the coamings are going to be curved nicely.

The holes in transom are also shown in the pic above. The top hole is a drainage hole for the motor well. The middle two are drainage holes for the cockpit. These holes may or may not be above the waterline, so I may need to plug them when sailing ... we'll see. The lower holes are drainage holes for the bilge, which will be plugged when the boat is in the water.

The boat is now safely in the garage again. In the photo below, you can see some notches in the coaming base pieces. This is for drainage, so water will not pool on the side decks along the coamings.

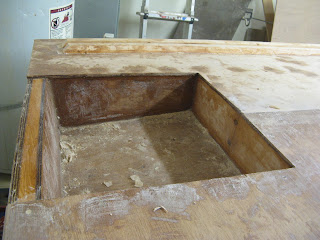

Here's a closer shot of the motor well. Just a watertight plywood box. The bottom is sloped toward the drainage hole. I still need to put a little oak cap along the back edge and round the edges a little.

I also glued and nailed the cockpit sole (floor). I cut some round holes in the floor for access to the back section of the bilge. These holes will be fitted with plastic watertight hatch covers.
